OUR PRODUCTS CX Series - The World's Lightest Tipping Gear

The Fully integrated ram and tank design of the CX range is ideally suited to rigid truck installations..

Benefits and Features

Lightweight, high performance combined ram & tank for rigid tipping applications.

Benefits:

  • The lightest cylinder on the market providing a saving of up to 258 kg per tip
  • Increased productivity with the fastest tipping cycles
  • Zero downtime and minimal servicing with a fit and forget reputation you can count on
  • Optimum bodybuilder turnaround time with combined ram & tank assembly, dramatically reducing installation time

Features:

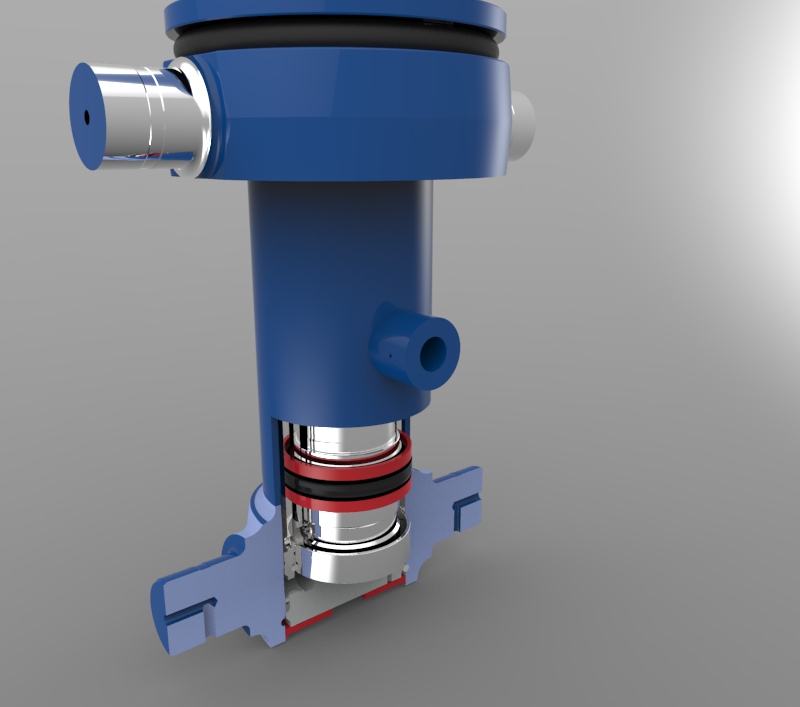

  • Double lip wiper seal ensures efficient lubrication of each tube and prevents contamination of the cylinder
  • Unique 5-point sealing system reduces friction for years of smooth, trouble-free operation
  • One-piece tubes with large stop contact faces provide optimum durability for long life and reduced maintenance
  • Laser-welded tube assembly increases strength and fatigue life
  • A brass slider reduces the risk of scoring and damage due to side load
  • Triple cast iron piston rings on each stage provide the ultimate reliability in double-acting sealing

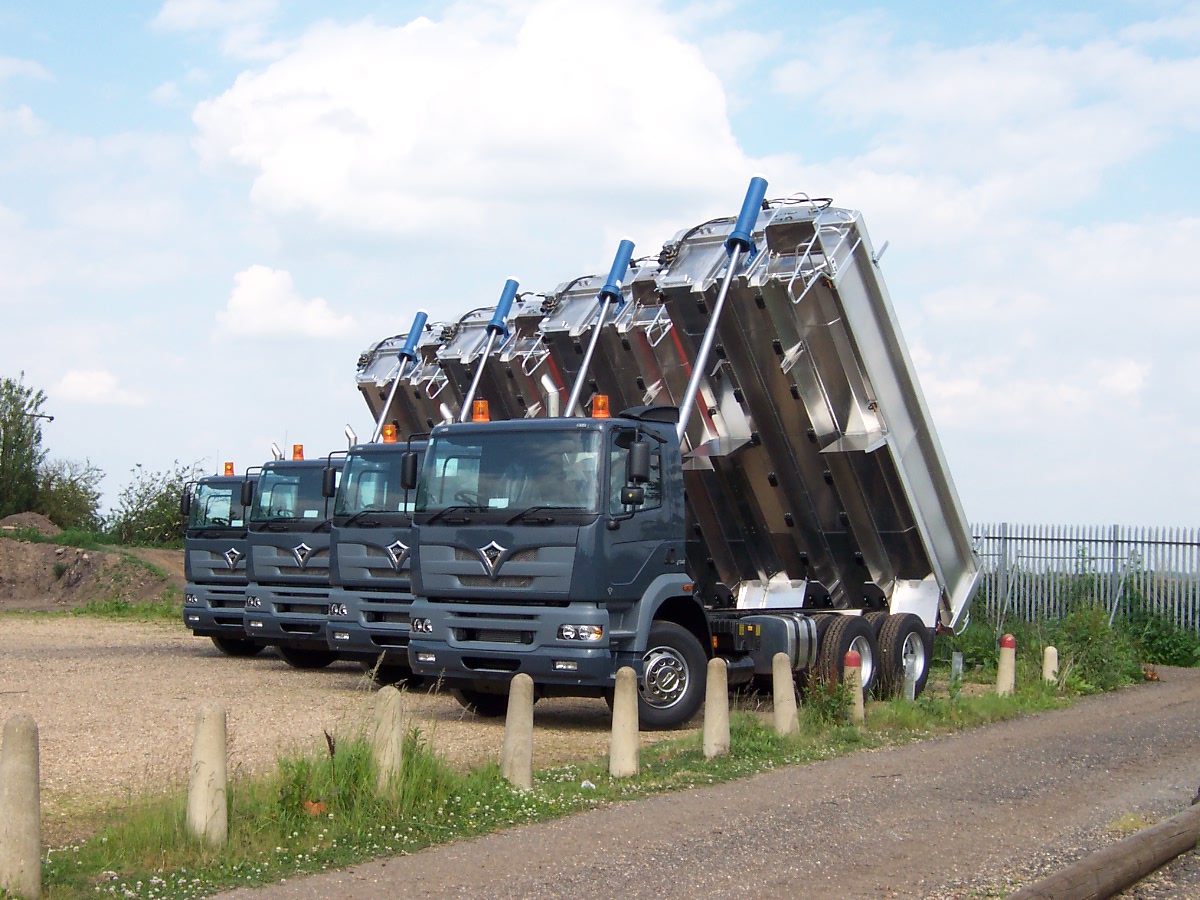

Picture 230

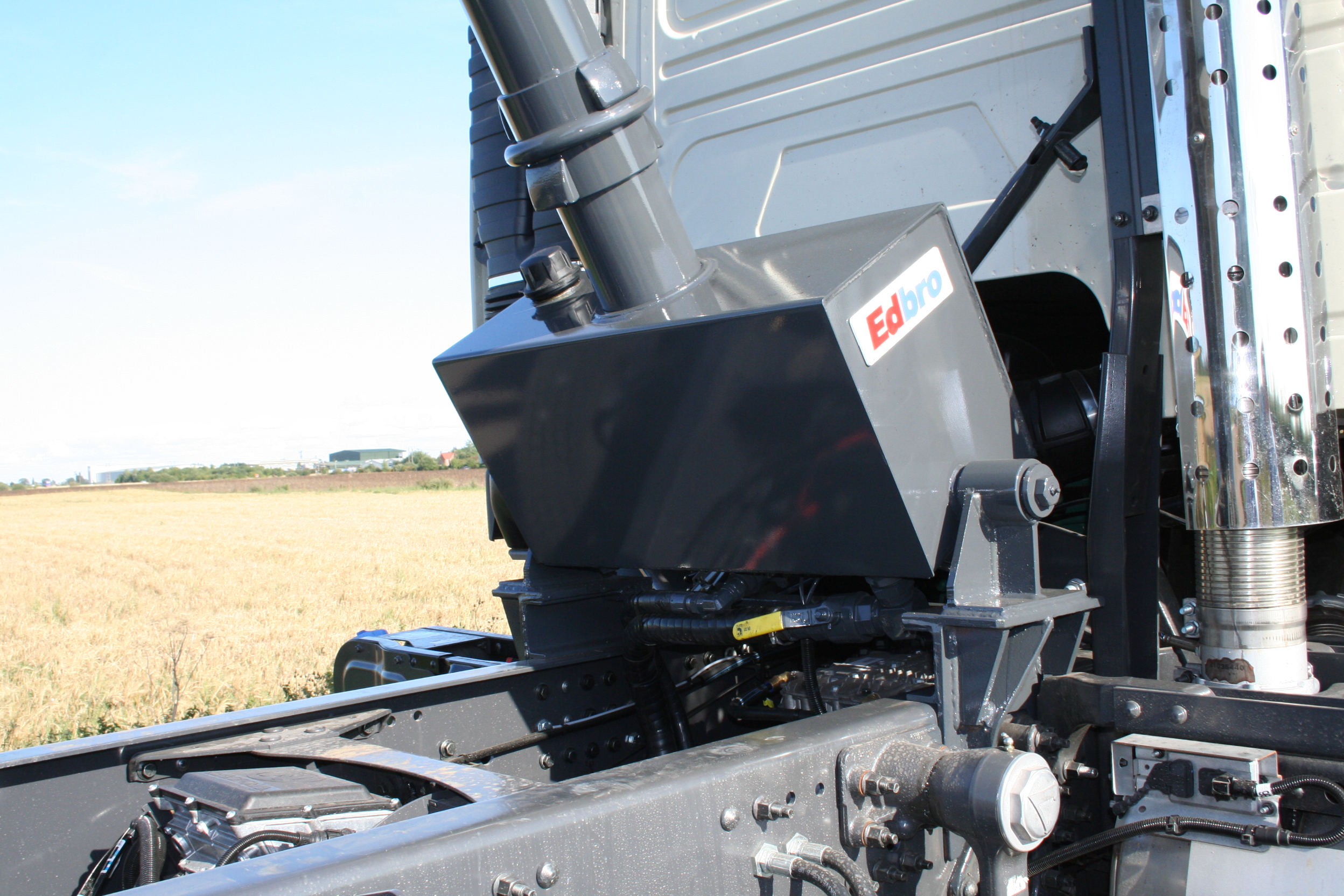

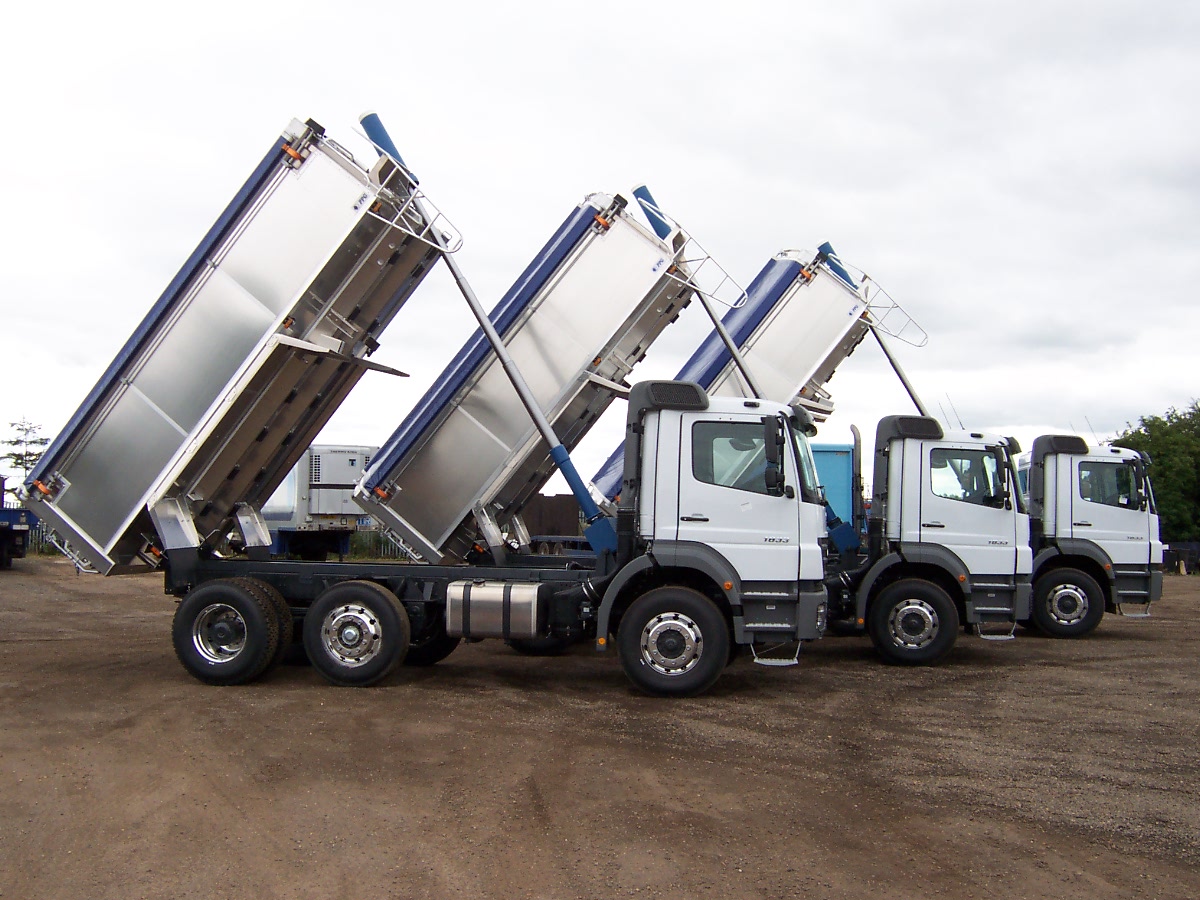

Picture 235
Air Controls for Manufacture and Sale

Model Range

Models in the CX Series are available with lift capacities from 10 to 32 tonnes and are designed for rigid trucks with 15 to 36 tonne G.V.W.

Model code Nominal Truck G.V.W.(t) Hoist Stroke (mm)* Nominal Lift Capacity (t) Nominal Body Length (m) Average Kit Weight Incl. oil (kg)
CX07 7.5 – 15 2,130 07 – 11 3.0 165
2,355 3.25
2,595 3.5
2,895 3.5
3,195 4.25
CX10 15 3,059 10 – 13 4.0 212
3,359 4.3
CX11 18 3,271 12 – 15 4.25 289
3,871 5.0
4,271 5.5
CX11 22 3,344 16 4.5 289
3,644 5.0
3,944 5.25
CX13 26 3,841 19 – 24 5.0 442
4,241 5.5
4,641 6.0
CX14 32 5041 22 – 25 6.5 477
CX15 32 – 36 4,606 29-32 5.75 535
5,006 6.50
5,606 7.0

Actual kit weight relates to complete hoist kit including PTO/pump. Actual weights vary according to installation
* Further strokes available on request

Hydraulic Kit Solutions

Hydraulic kit solutions available to optimise cylinder performance. For full details check out the Hydraulic Kit Solutions page.
